Mounting on pedestals

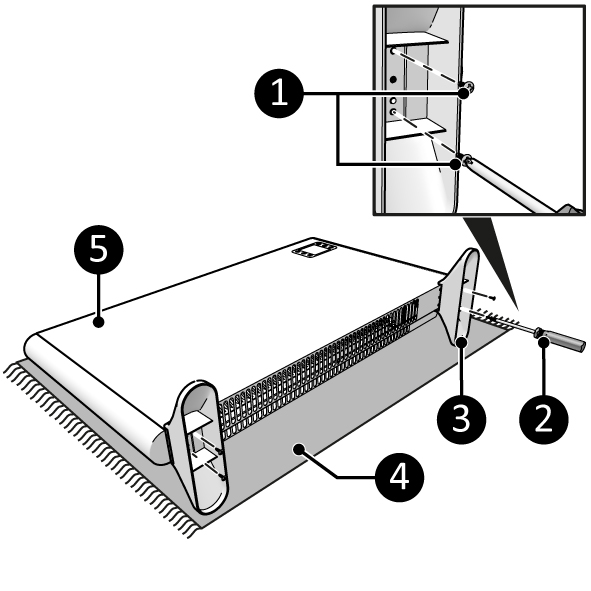

1. Lay the device down on a steady soft surface (Figure 1, pos. 4).
Figure 1.
2. Place the pedestals (Figure 1, pos. 3) on both sides of the main body (Figure 1, pos. 5).
3. Screw and tighten the pedestals with a small screw (Figure 1, pos. 1) using a Phillips screwdriver (Figure 1, pos. 2).
4. Place the device on a horizontal, solid and non-flammable surface.

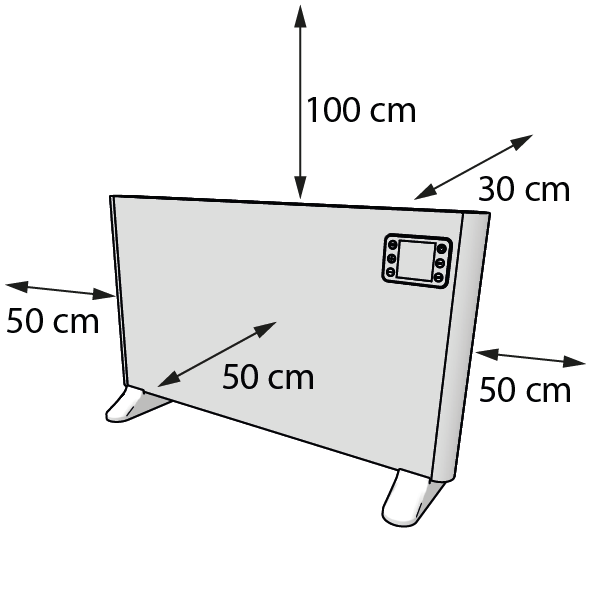

Figure 2.
5. Place the device with a minimum clearance distance (Figure 2) of:
  • 100 cm on the top side;
  • 50 cm on the sides;
  • 30 cm on the back side;
  • 50 cm on the front side.
6. Do not place the device immediately below a socket outlet.
